Roland PG-200 Synthesizer Programmer Used

Roland PG-200 Synthesizer Programmer Used

  • Descripción


Roland PG-200 Synthesizer Programmer Used

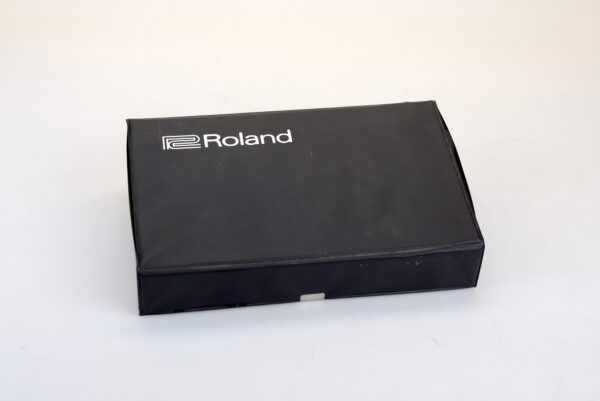

In good condition with original case

The PG-200 was built by Roland to aid in the programming of the Roland JX-3P, MKS-30 and GR-700. The JX-3P, MKS-30 and GR-700 all share the same synthesizer engine, and have the same programming parameters.Roland PG-200 Programmer MapClick on image for larger view.The PG-200 is not necessary to program these synthesizers, but programming is much easier with the PG-200. Even with a deep knowledge of analog synthesis, using the PG-200 provides for many “happy accidents” that can provide some great sounds.The PG-200 connects to the host synthesizer via a 6-pin DIN cable. These cables are easy to build if lost. They use a 6-pin DIN connector often used as a power plug. The pins are wired one-to-one, i.e. pin “1” to pin “1”, etc.

  • DCO-1: Range (4′, 8′, 16′) waveform: triangle, pulse, square, FM (lfo, env)
  • DCO-1: Range (4′, 8′, 16′) waveform: triangle, pulse, square, noise, FM (lfo, env), tune (+/- 1200 cent) cross modulation (sync, metal)
  • Modulation: sensitivity (lfo, env)
  • VCF: source mix, HPF cutoff frequency, LPF cutoff frequency, resonance, env modulation, polarity, LFO modulation, pitch follow
  • VCA: mode (env, gate) level
  • ENV: Attack time, decay time, sustain level, release time
  • LFO: Waveform (sine, square, random), delay time, rate
  • Chorus: (on/off)
  • Function buttons: Manual button & indicator, write button & indicator
  • DIN jack (DIN6P)
  • Dimensions: 244 (W) x 172 (H) x 45 (D) mm
  • Weight: 1.4 kg/3 lb. 1 oz.
