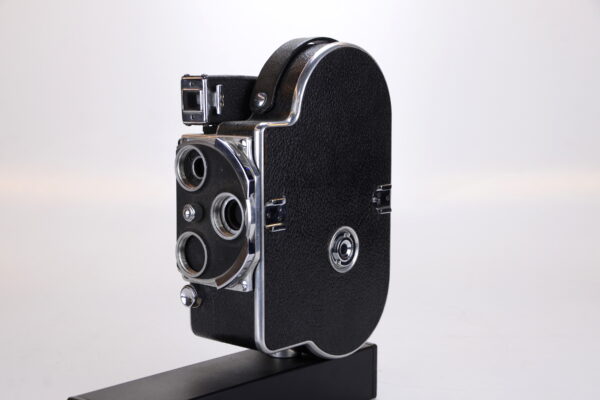

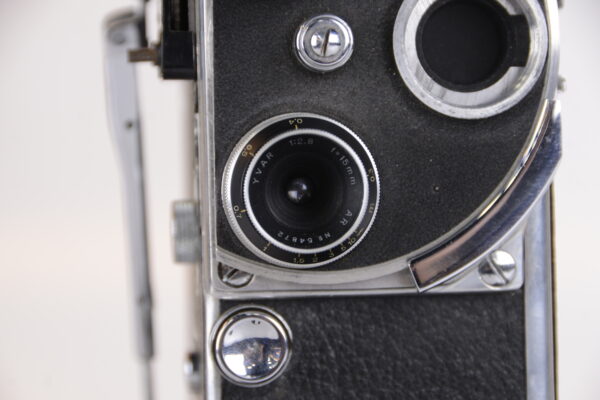

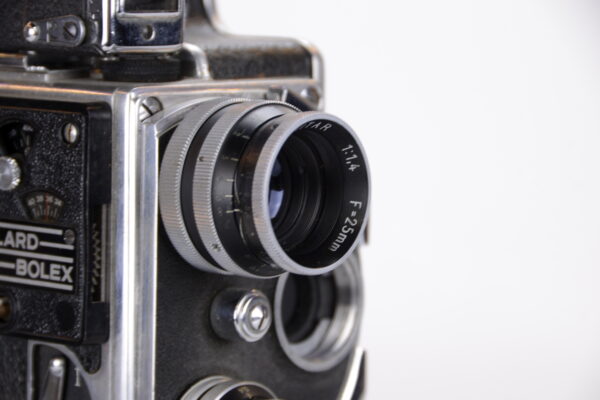

H-16 16mm Camera 1935, with external frame counter and two lens switar 25mm 1,4 and 15mm 2,8
OVERALL DIMENSIONS: 8 1/2″ x 6″ x 3″
WEIGHT: Approximately 5 1/2 lbs (without lenses)
OUTER CASE: Highly polished duraluminium body, covered in genuine Morocco leather. Metal parts are chrome-plated.
FILM CAPACITY: 100ft (30m) and 50ft (15m) daylight loading spools of 16mm film.

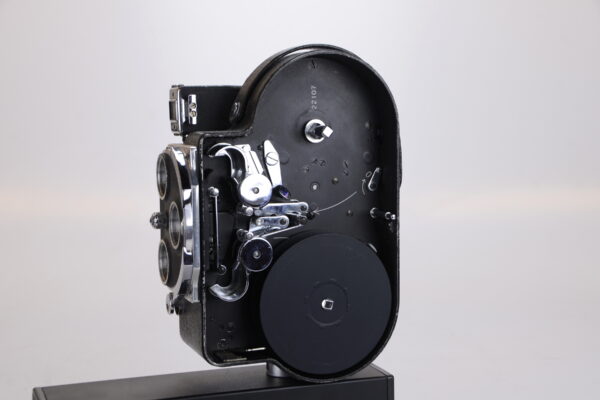

THREADING: Automatic threading and loop forming. The end of the film is simply placed in a channel leading to the feed sprocket. The release is pressed and the film is then automatically threaded throughout the entire mechanism.

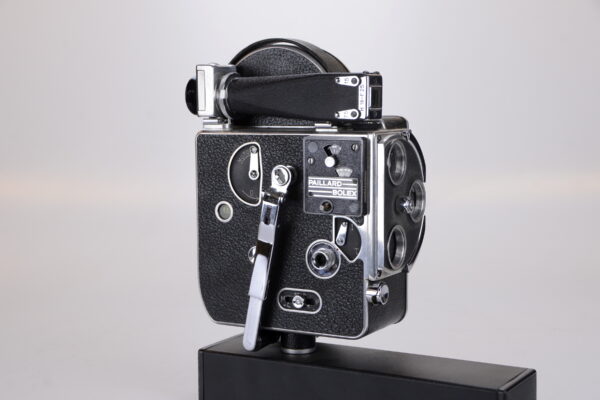

MOTOR: Constant speed, spring motor mechanism; governor controlled. Large winding handle folds downward and attaches to camera when not in use. Spring cannot be over-wound. 8:1 external drive shaft permits the attachment of an electric motor.
TURRET: Rotating turret accommodates three interchangeable C mount lenses. The top position allows for critical focusing through a groundglass screen on later versions of this model.
VIEWFINDER: accessory Tri Focal viewfinder gives an exact viewing field for lenses of 3 focal lengths. Later versions of this model had a built-in critical focus viewer with optional cupped eyepiece.
VARIABLE SPEED: 8, 16, 24, 32 and 64 frames per second with the ability to change speeds while the camera is running.
RELEASE BUTTON: provides for the making of continuous exposures by a finger-tip release on the front of the camera. A side release allows for locked, hands-free running or single frame exposures.
SHUTTER: 190 degree disc shutter, operates at 118/1000 of an inch from emulsion side of film with an exposure rate of 1/30 second at 16 fps.
FOOTAGE COUNTER: adds and subtracts accurately in forward or reverse motion and automatically returns to zero when film is reloaded into the camera.
AUDIBLE FOOTAGE INDICATOR: A distinct click announces the passing of each 10 inches of film through the gate. This mechanism may be disengaged, if desired, by simply moving a lever.
FRAME COUNTER: An accessory frame counter could be attached to the motor crank shaft. Two separate counters registered increments of single frames and 50 frames as the film progressed.
SINGLE FRAME: Time lapse and animation is possible by using the side release button or an accessory cable release and adapter; I-T lever allows for timed or instantaneous single exposures.
MANUAL REWIND: Clutch disengages spring motor and permits forward movement and backwind without running down the spring; allows for dissolves and superimposition.
