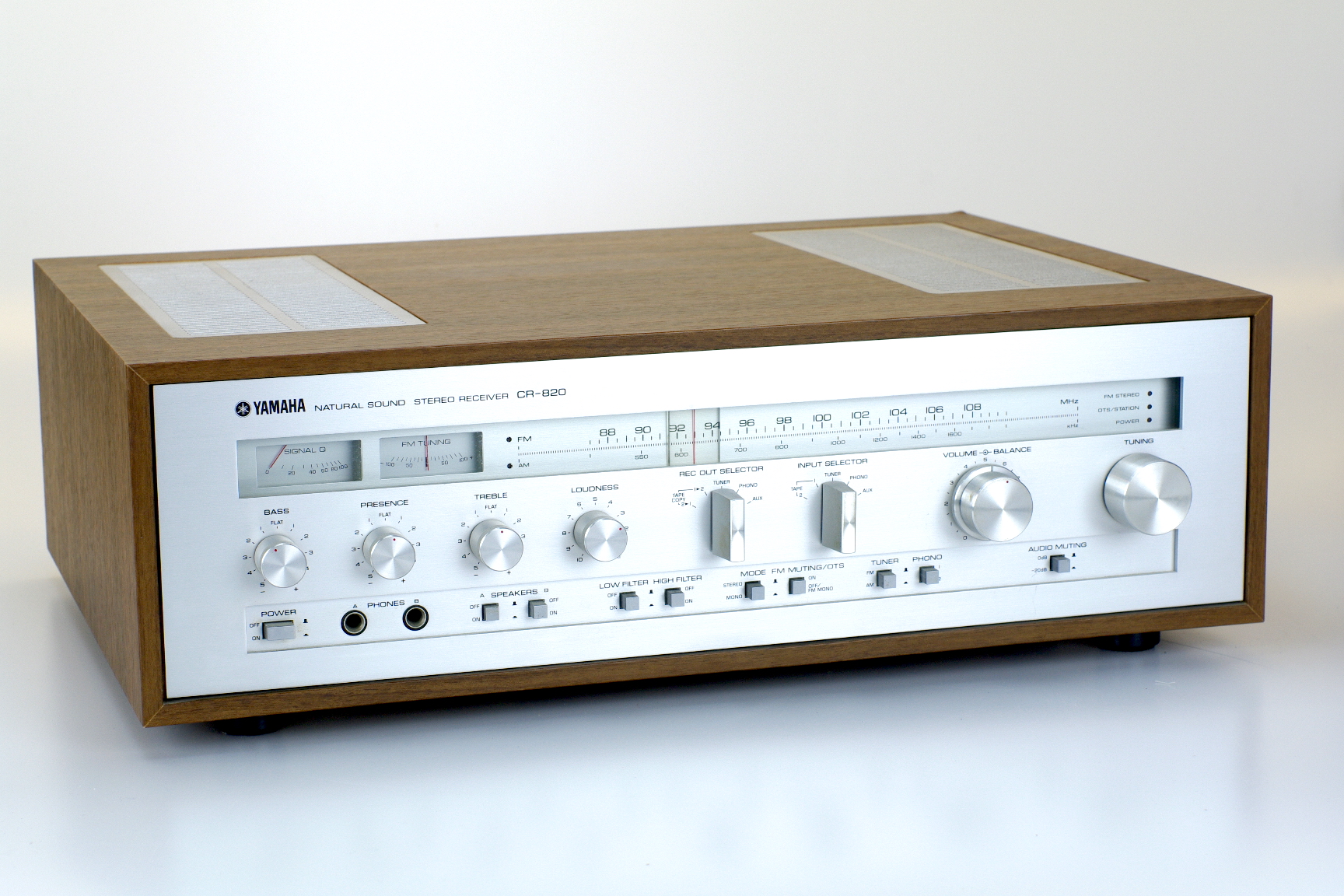

Yamaha CR-820 used
Descripción
Yamaha CR-820 used
Mind condition
Description
Accurately matched performance specifications, functions and controls give overall performance which fully measures up to Yamaha’s high tuner, pre and power amplifier standards.
The CR-820 offers an extremely wide range of output powers for which both noise and distortion are below the rated value, for wide dynamic range in actual use.
Both signal strength and centre-zero meters are provided, with the signal strength meter doubling as a signal quality meter on FM.
Specifications
Tuning range: FM, MW
Power output: 55 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.02%
Damping factor: 40
Input sensitivity: 2mV (MM), 120mV (DIN), 120mV (line)
Signal to noise ratio: 92dB (MM), 97dB (line)
Output: 120mV (line), 30mV (DIN)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 74 x transistors, 4 x IC, 1 x FET, 30 x diodes, 5 x zener diodes, 5 x LED, 4 x ceramic filters
Dimensions: 448 x 146 x 395mm
Weight: 12.2kg
