Yamaha CR-820 used

  • Descripción

Descripción

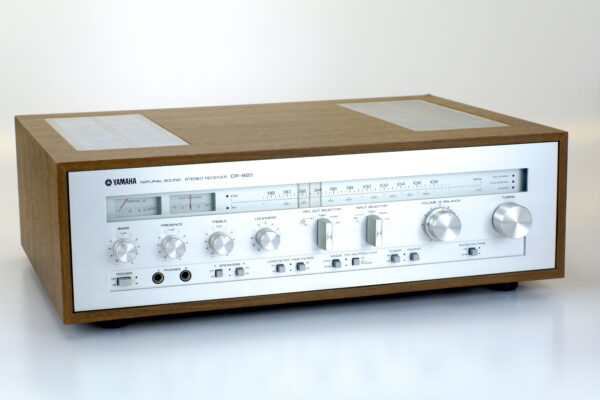

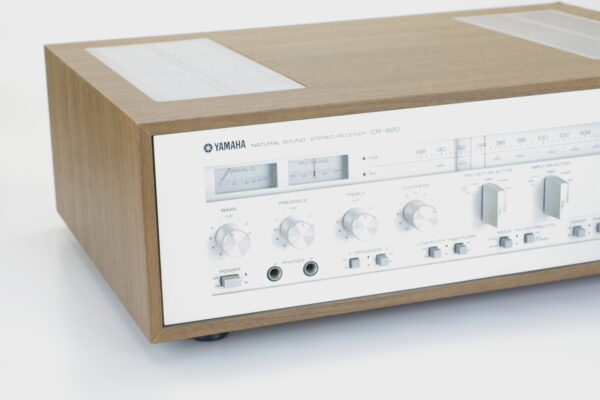

Yamaha CR-820 used

Mind condition

Description

Accurately matched performance specifications, functions and controls give overall performance which fully measures up to Yamaha’s high tuner, pre and power amplifier standards.

The CR-820 offers an extremely wide range of output powers for which both noise and distortion are below the rated value, for wide dynamic range in actual use.

Both signal strength and centre-zero meters are provided, with the signal strength meter doubling as a signal quality meter on FM.

Specifications

Tuning range: FM, MW

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.02%

Damping factor: 40

Input sensitivity: 2mV (MM), 120mV (DIN), 120mV (line)

Signal to noise ratio: 92dB (MM), 97dB (line)

Output: 120mV (line), 30mV (DIN)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 74 x transistors, 4 x IC, 1 x FET, 30 x diodes, 5 x zener diodes, 5 x LED, 4 x ceramic filters

Dimensions: 448 x 146 x 395mm

Weight: 12.2kg
