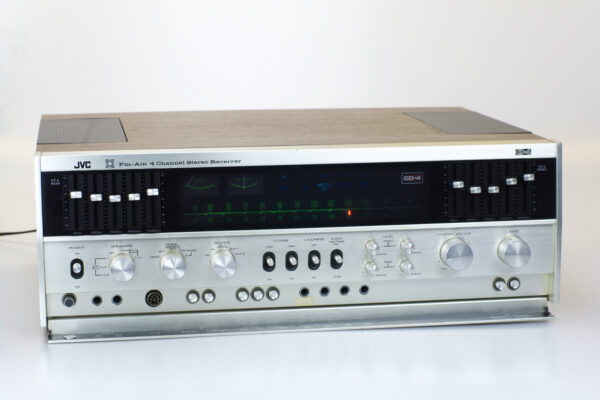

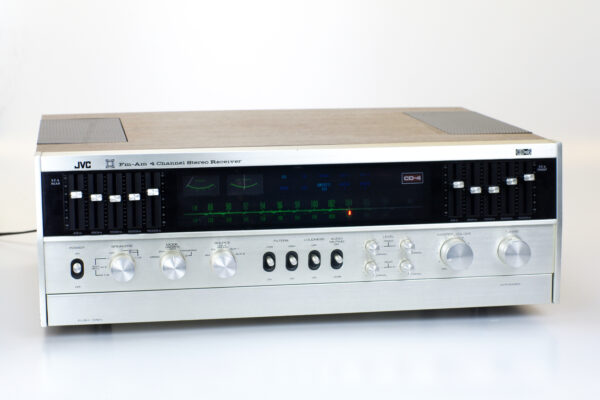

JVC 4VR-5456X used

  • Descripción


JVC 4VR-5456X used

Good working condition

BTL is a JVC original. With it you can play back 2-channel stereo with double power.

This is done by linking the power amplifiers so that when you are playing 2-channel sound two of the power amplifiers do not remain idle; by internal connection they are reconnected so that each of the two channels passes through two power amplifiers.

The 4VR-5456X is ready for the day when FM discrete 4-channel broadcasting starts.

At the moment some 2-channel FM broadcasts are made in matrix 4-channel formats; these can be heard as 4-channel by selecting the appropriate matrix decoder with the mode selector.

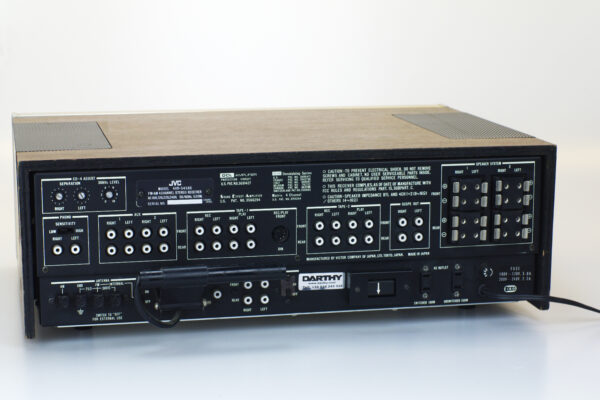

When 4-channel FM broadcasting starts, connect a demodulator to the jacks on the rear panel, remove the plate holding the FM 4-channel switch in its off position and switch on.

Connect the FM DET OUT jack on the rear panel to the demodulators input jack and the demodulator’s output jacks to the FM 4-channel input jacks.


Tuning range: FM, MW

Power output: 100W/ch (stereo), 43W/ch into 8Ω (quadraphonic)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.5%

Damping factor: 40

Input sensitivity: 3mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MM), 75dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 180 x 513 x 405mm

Weight: 20kg

Seguro que muchos de vosotros conoceis nuestra tienda física, muchos de los aficionados al HiFi Vintage y coleccionismo nos ha visitado. Debiso a que muchos de nuestro amigos ni pueden visitarnos por la distancia, hemos decidido potenciar nuestrio sitio web, por lo tanto podreis ver casi tosdos nuestro porductos desde vuestro dispositivos, así que, si veis algo que os puede interesar, podreis hacer vuestro pedidos comodamente desde vuestra casa.

En el momento de hacer vuestro pedido, haremos el envío rapidamente para que podais disfrutarlo lo antes posible en vuestra casa.

Nuestro servicio de entrega funciona cada día con el fin de haceros llegar vuestros pedidos en 48 horas o menos.

Con el proposito de que el materia llegue en las mejores condiciones, nuestro embalajes estan hechos con el máximo esmero, todos nuestros envios, tambien estan asegurados en caso de extravio o rotura.

Surely many of you know our physical store, many of the fans of Vintage HiFi and collecting has visited us. Because many of our friends can not visit us by distance, we decided to strengthen our website, so you can see our products almost coughing from your devices, so if you see something that may interest you, you can place your orders comfortably from your house.

At the time of placing your order, we will make the shipment quickly so that you can enjoy it as soon as possible in your home.

Our delivery service works every day in order to send your orders in 48 hours or less. With the purpose that the material arrives in the best conditions, our packages are made with the utmost care, all our shipments are also insured in case of loss or breakage.
