” power amps in excellent condition, in original box

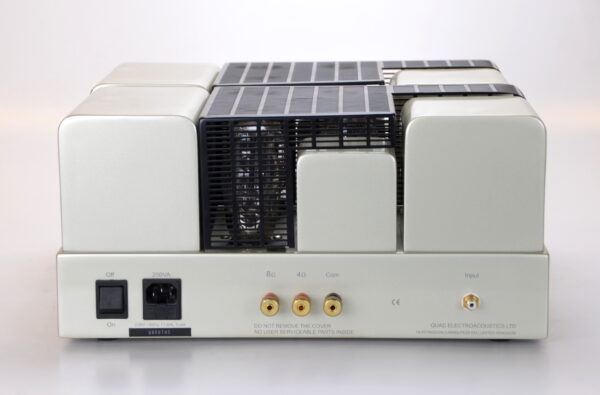

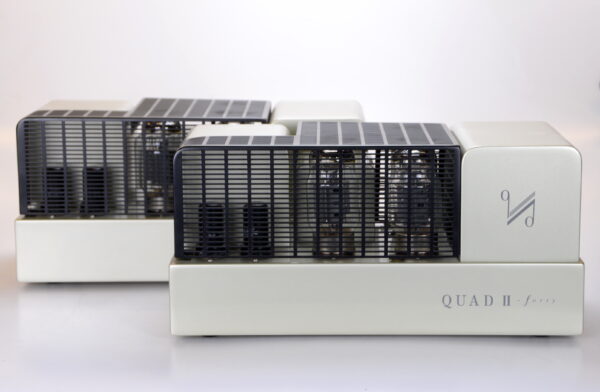

The Quad II-forty power amplifier is much more than a tribute to one of the most famous designs in audio – but refined and powerful in the modern sense of the terms. Although the circuit topology has changed a little from the original, significantly better components and a brand new transformer design have been engineered. While still being delicately balanced a fast, crisp and detailed sound is achieved, whilst producing an output current suitable for modern loudspeakers, including our very own ESL. KT-88 output valves work in push-pull configuration, while a choice of 4 Ohm or 8 Ohm taps allow for a wide choice of loudspeaker configurations.

Power output: 40W into 8Ω (mono)

Frequency response: 10Hz to 30kHz

Total harmonic distortion: 0.3%

Damping factor: 20

Input sensitivity: 1V

Signal to noise ratio: 80dB

Speaker load impedance: 4Ω to 8Ω

Valve complement: 2 x 6SH7, 2 x KT88, 1 x 5U4G
